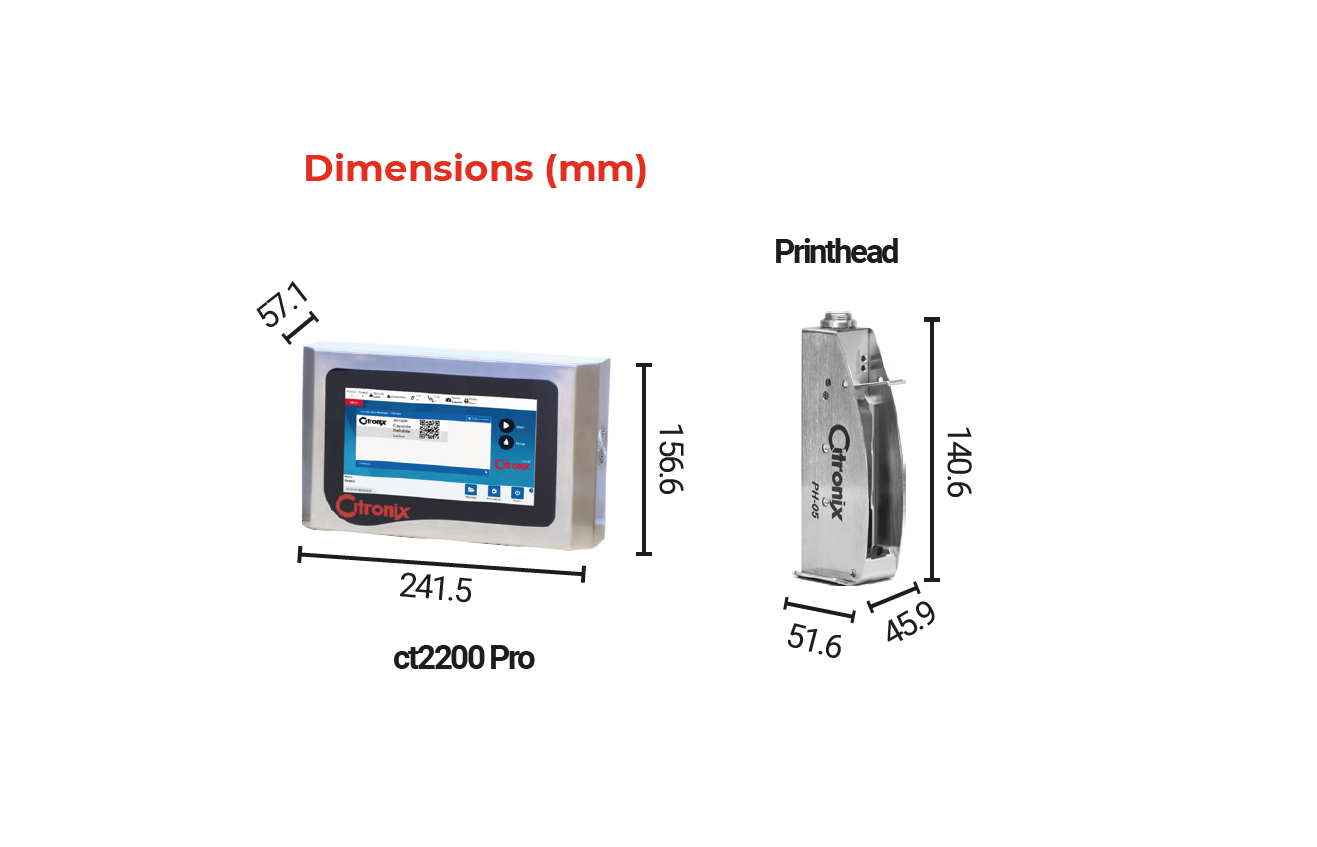

- Dimensions

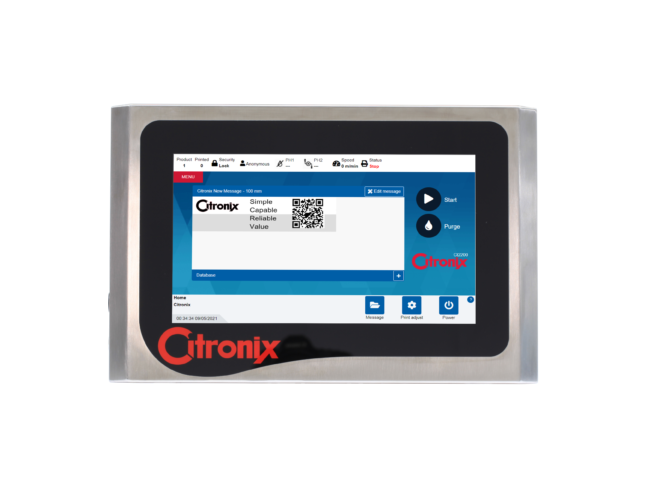

ct2200 Pro
Two head printer
Featuring a 7" capacitive touch screen with an intuitive user interface, the ct2200 Pro can print messages of up to 1" in heig
| Feature | Model Specification |
|---|---|
| Printheads | 1-2 |
| Lines of print | 1-2 |
| Throw distance | 1-5 mm |
| Font type | Windows true fonts |
| Density | Three levels |
| Print speed | up to 180 m/min |
| Max vertical resolutio | 600 dpi |
| Print height | up to 1" |
| Feature | ct2000 Series Specificatio |
|---|---|
| 7" Capacitive Touch Screen | Yes |
| Operating Temperature Range (Controller) | 5 – 50°C (41-122°F) |
| Operating Humidity Range (Controller) | 10-90% RH, non-condensing |
| Communication | Ethernet, RS232 |
| External Connection | USB, photocell, encoder and alarm beacon |
| Power Supply | AC 100V-240V, 50/60Hz, 24VDC 5.0A, Max consumption: 120W |
| Languages | English, Russian, Chinese, Italian, German, Portuguese, Spanish, Thai, Japanese, Arabic and Vietnamese |
Aqueous Inks
- High contrast black (Pharmaceutical)
- Porous substrate black
- Direct food contact (DFC) red
Solvent Inks
- Non-porous substrate ethanol black (Methanol Free)
- General-purpose ethanol white
- UV readable ethanol clear to red (Methanol Free)
- UV readable ethanol clear to blue (Methanol Free)
- Non-porous substrate ethanol black
- PVC ethanol black
- Air Filter
- Beacon, tricolor LED
- Data Cable, 2m (Straight Printer, 90 Controller)
- Data Cable, 3.5m (Straight Printer, 90 Controller)
- DB15 Connector for accessories
- Encoder
- Encoder and Photocell
- HP Cartridge Priming Tool
- Large (1 to 4 head) anti-shock mount
- Photocell
- Photocell, Encoder and Beacon
- Printhead faceplate kit x1 PH-05 Printhead
- Printhead faceplate kit x2 PH-05 Printhead
