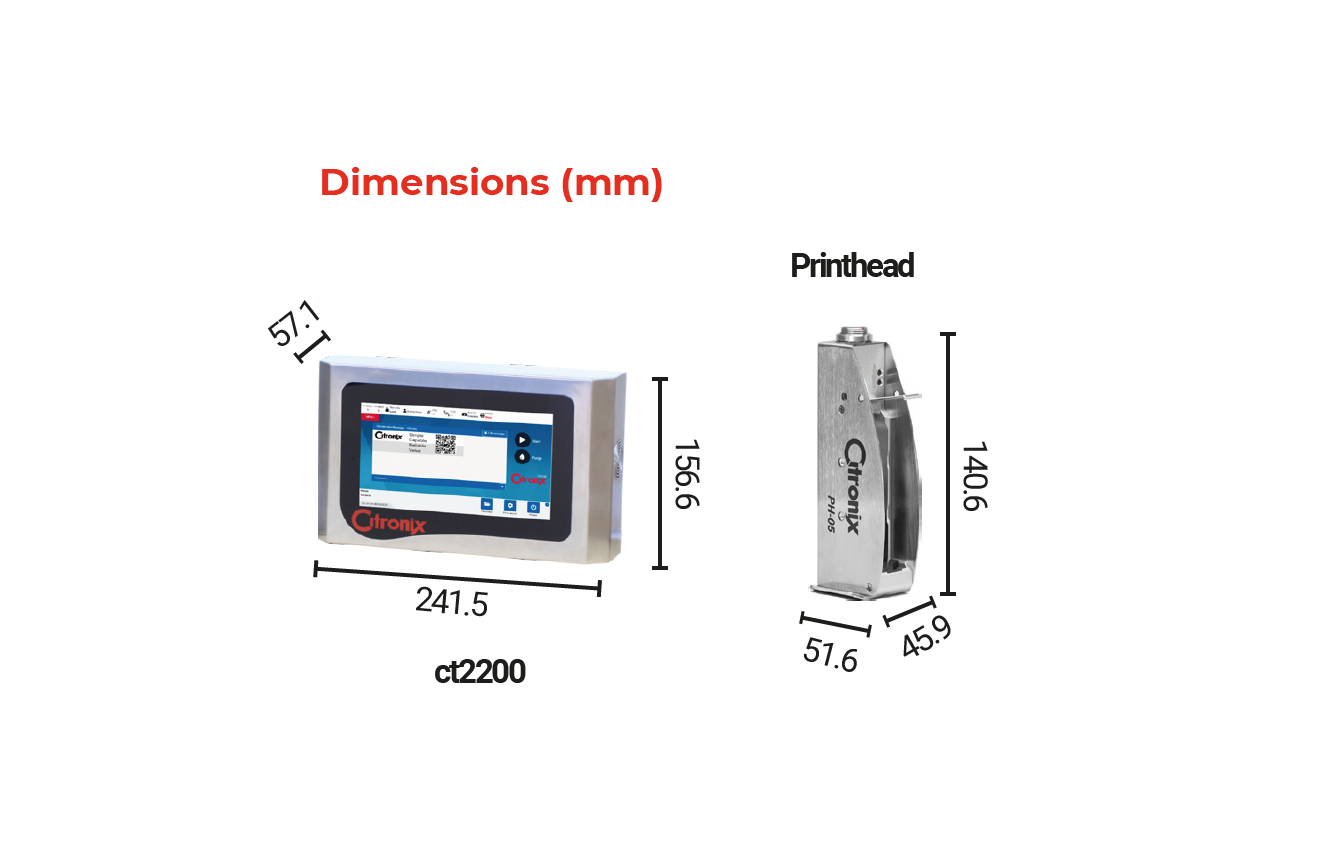

- Dimensions
ct2200
Single head printer
Featuring a 7" capacitive display with an intuitive user interface, the ct2200 can print messages upto 0.5" in height.
| Feature | Model Specification |
|---|---|
| Printheads | 1 |
| Lines of print | 1 |
| Throw distance | 1-5 mm |
| Font type | Windows true fonts |
| Density | Three levels |
| Print speed | up to 180 m/min |
| Max vertical resolution | 600 dpi |
| Print height | up to 0.5" |
| Feature | ct2000 Series Specification |
|---|---|
| 7" Capacitive Touch Screen | Yes |
| Operating Temperature Range (Controller) | 5 – 50°C (41-122°F) |
| Operating Humidity Range (Controller) | 10-90% RH, non-condensing |
| External Connection | Photocell, encoder and alarm beacon |
| Languages | English, Russian, Chinese, Italian, German, Portuguese, Spanish, Thai, Japanese, Arabic and Vietnamese |
| Power Supply | AC 100V-240V, 50/60Hz, 24VDC 5.0A, Max consumption: 120W |
Aqueous Inks
- High contrast black (Pharmaceutical)
- Porous substrate black
- Direct food contact (DFC) red
Solvent Inks
- Non-porous substrate ethanol black (Methanol Free)
- General-purpose ethanol white
- UV readable ethanol clear to red (Methanol Free)
- UV readable ethanol clear to blue (Methanol Free)
- Non-porous substrate ethanol black
- PVC ethanol black
- Air Filter

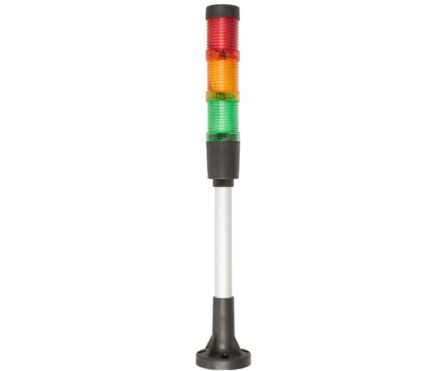

- Beacon, tricolor LED

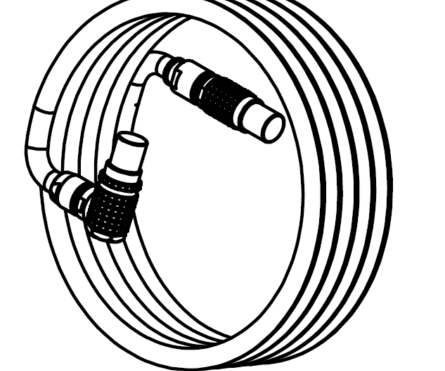

- Data Cable, 2m (Straight Printer, 90 Controller)
- Data Cable, 3.5m (Straight Printer, 90 Controller)

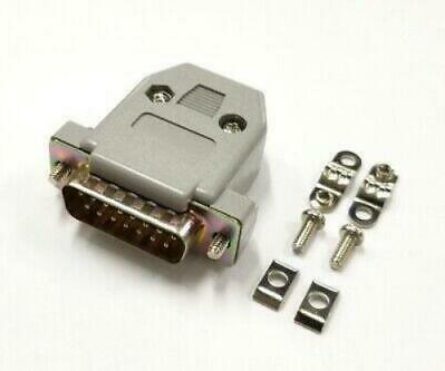

- DB15 Connector for accessories

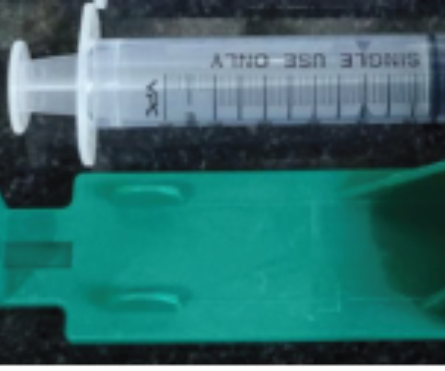

- HP Cartridge Priming Tool
- Encoder
- Encoder and Photocell

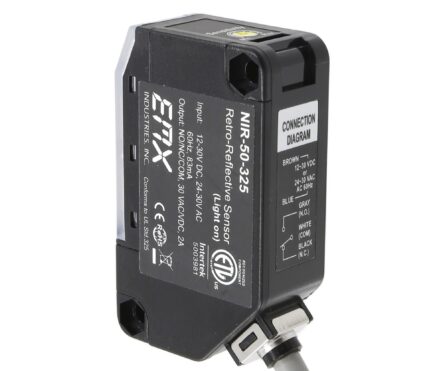

- Photocell
- Photocell, Encoder and Beacon
- Printhead faceplate kit x1 PH-05 Printhead
