ci5200

Entry Level Printer

Entry level printer for typical 1 or 2 line printing applications at speeds of up to 6.9m/s. Designed with IP55 rated black powder coated steel cabinet with standard communication features configured for general purpose inks.

Flyer

Capability

Compare

Feature Model Specification
Assumed usage (hours/year) 2,000 to 4,000
Lines of print 1 - 2 lines
Character height 3mm to 12mm
Font height 5 to 16 dots
Line speed at 5 drop and 50 dpi up to 6.9 m/s
Nozzle size 65μm
Drop size Macro (75μm)
PixelPlus No
ciLink No
Inputs (photocell / shaft encoder / programmable) 1 / 1 / 0
Cabinet Powder Coated Steel
IP Rating IP55
Weight (including printhead) 18kg
Warranty 30 months manufacturers warranty as standard (local conditions may vary).
Feature ci5000 Series Specification
10.1" Touch Screen Yes
ciEasyServ Yes
ciPrecisionPlus Yes
SmartFlush Yes
ciSafeFill Yes
Programmable Alarms / Relays 3 / 1
Conduit Length 9ft (2.75m) as standard
Service interval Service intervals of 8,000 hours or 18 months, depending on environment.
Languages English, Spanish, French, German, Italian, Chinese (Simplified), Chinese (Traditional), Russian, Bulgarian, Kasakh, Macedonian, Arabic, Vietnamese, Korean, Japanese, Polish, Latvian, Lithuanian, Estonian, Turkish, Thai, Hebrew, Greek, Danish, Swedish, Norwegian, Finnish, Portuguese, Brazilian, Romanian, Croatian, Slovenian, Serbian, Albanian, Slovak, Czech, Hungarian, Dutch, Hindi, Urdu, Persian and Swahili.
Power 90 - 240V:(3 Amp), auto-ranging; 50 - 60Hz
Operating Temperature Range 5ºC to 45ºC (41ºF to 113ºF), ink dependent
Humidity Range 10 – 90%, non-condensing
Tank Sizes 1.9 liter ink tank; 2.25 liter make up tank
Ink and Make Up Bottles 750ml error-proof ink and make up bottles

General Purpose Inks

  • General Purpose Ethanol Black
  • General Purpose Acetone Black
  • General Purpose MEK Black
  • General Purpose MEK Red
  • General Purpose MEK Blue
  • Special Plastic MEK Black


Accessories and Consumables

  • Alarm Beacons
  • Photocells
  • Shaft Encoders
  • Positive Air Kit

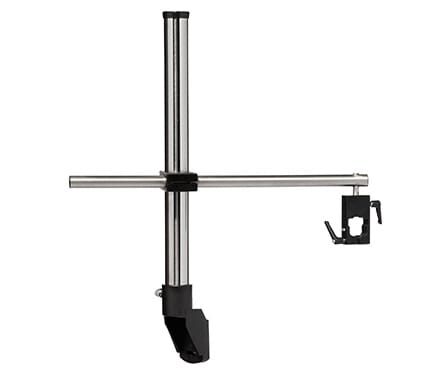

  • Bench and Floor Mountings
  • Printhead Wash Station
  • Printhead Brackets

Build Configurations

  • Right Angled Printheads and Conduit Connections
  • Multiple Conduit Lengths (9ft, 15ft and 20ft)
  • Anaconda Conduit (Smooth Surface)

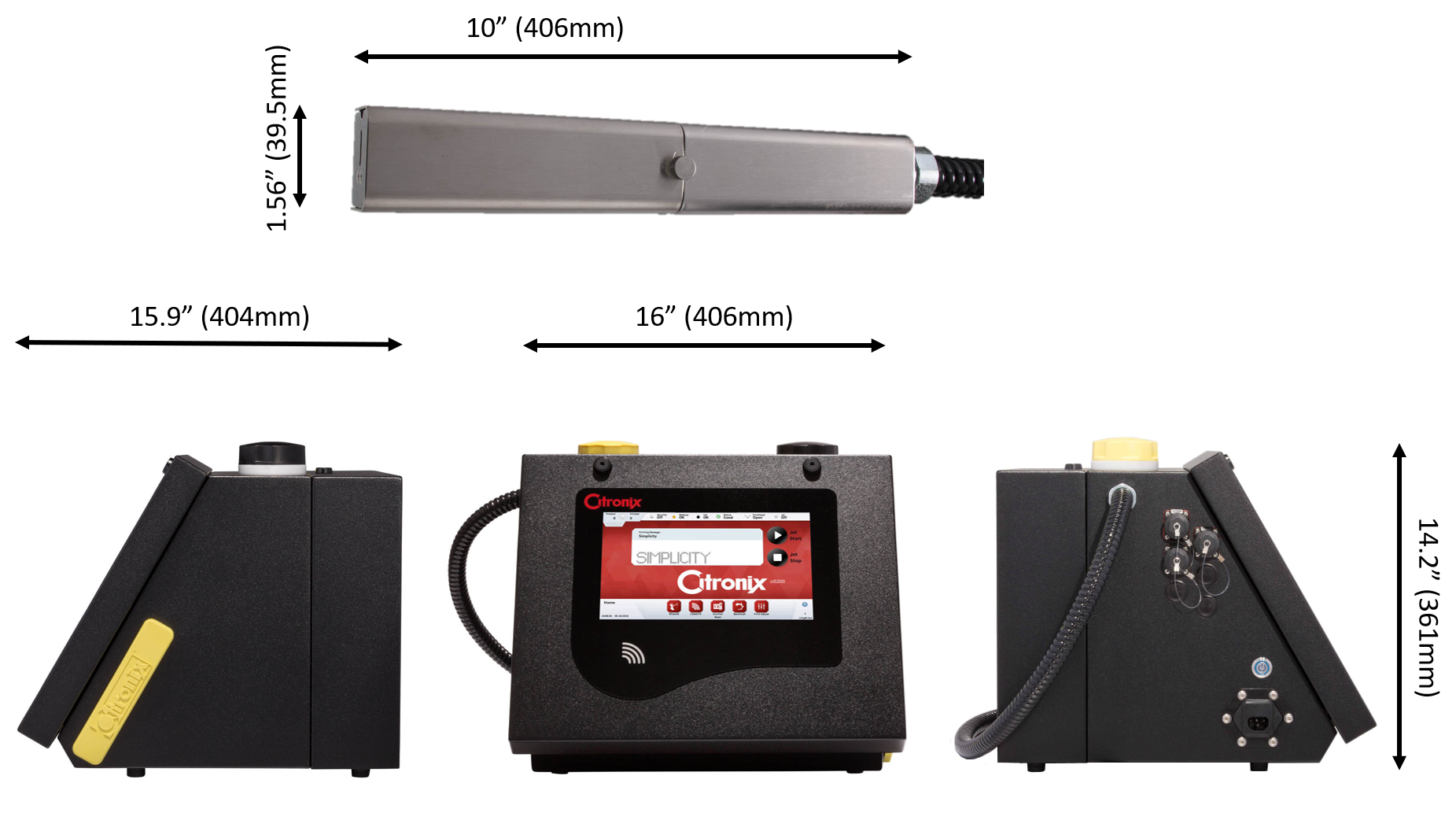

Ci5200 Dimensions
