ci5300

Intermediate Printer

Intermediate printer in stainless steel cabinet to meet 1 to 3 line printing applications with Macro and Normal drop size at speeds of up to 9.8m/s. Designed for all non-pigment ink types.

Flyer

Capability

Compare

Feature Model Specification
Assumed usage (hrs/year) 3,000 to 6,000
Lines of print 1 - 3 lines
Character height 1.5mm to 12mm
Font height 5 to 25 dots
Line speed at 5 drop and 50 dpi up to 9.8 m/s
Nozzle size 65μm
Drop size Normal (60μm), Macro (75μm)
PixelPlus Yes
ciLink No
Inputs (photocell / shaft encoder / programmable) 2 / 1 / 8
Cabinet Stainless Steel
IP Rating IP55
Weight (including printhead) 18kg
Warranty 30 months manufacturers warranty as standard (local conditions may vary).
Feature ci5000 Series Specification
10.1" Touch Screen Yes
ciEasyServ Yes
ciPrecisionPlus Yes
SmartFlush Yes
ciSafeFill Yes
Programmable Alarms / Relays 3 / 1
Conduit Length 9ft (2.75m) as standard
Service Interval Service intervals of 8,000 hours or 18 months, depending on environment.
Languages English, Spanish, French, German, Italian, Chinese (Simplified), Chinese (Traditional), Russian, Bulgarian, Kasakh, Macedonian, Arabic, Vietnamese, Korean, Japanese, Polish, Latvian, Lithuanian, Estonian, Turkish, Thai, Hebrew, Greek, Danish, Swedish, Norwegian, Finnish, Portuguese, Brazilian, Romanian, Croatian, Slovenian, Serbian, Albanian, Slovak, Czech, Hungarian, Dutch, Hindi, Urdu, Persian and Swahili.
Power 90 - 240V:(3 Amp), auto-ranging; 50 - 60Hz
Operating Temperature Range 5ºC to 45ºC (41ºF to 113ºF), ink dependent
Humidity Range 10% to 90%, non-condensing
Tank Sizes 1.9 liter ink tank; 2.25 liter make up tank
Ink and Make Up bottles 750ml error-proof ink and make up bottles

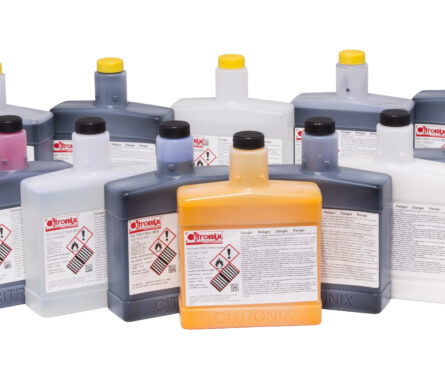

General Purpose Inks

  • General Purpose Ethanol Black
  • General Purpose Acetone Black
  • General Purpose MEK Black
  • General Purpose MEK Red
  • General Purpose MEK Blue

Specialty Inks

  • Alcohol Resistant Black

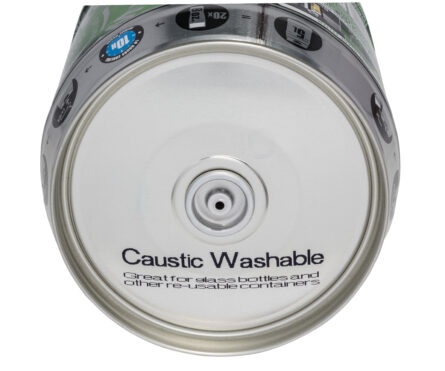

  • Caustic Washable Black
  • Caustic Washable Green
  • Plastic Black
  • Plastic Plus Black
  • Special Plastic Black
  • Plastic Acetone/Ethanol Black
  • Direct Food Contact (DFC) Red
  • Direct Food Contact (DFC) Blue
  • Thermotropic Black to Red

Accessories and Consumables

  • Alarm Beacons
  • Photocells
  • Shaft Encoders
  • Bench and Floor Mountings
  • Printhead Wash Station
  • Printhead Brackets
  • Positive Air Pump

Build Configurations

  • Right Angled Printheads and Conduit Connections
  • Multiple Conduit Lengths: 9ft (2.75m), 15ft (4.6m) and 20ft (6.1m)
  • Anaconda Conduit (Smooth Surface)
Ci5500 Dimensions
